General |
|

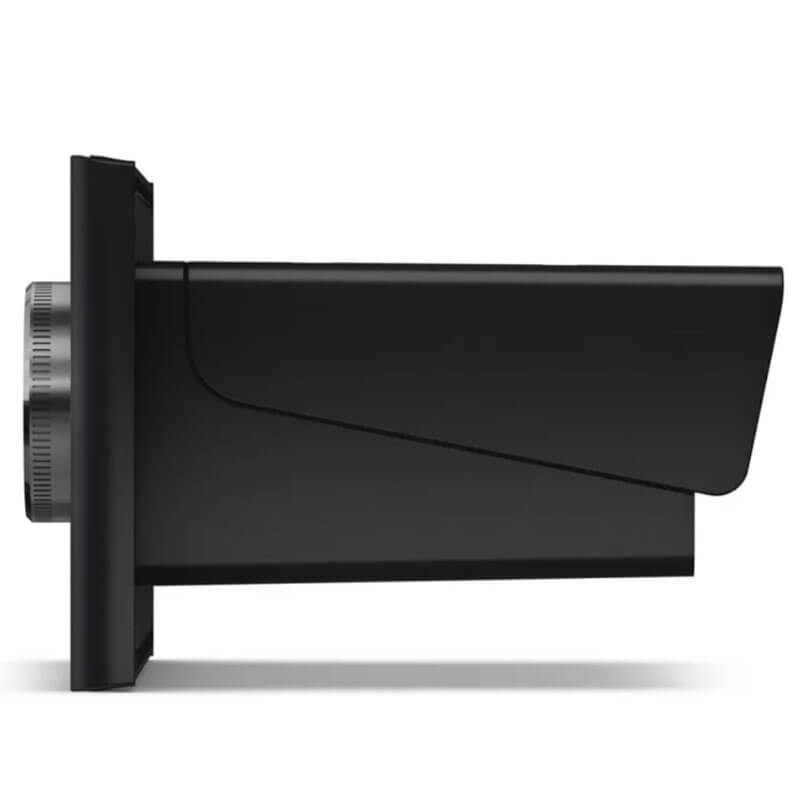

| DIMENSION | 7.56″ x 3.23″ x 4.7″ (192 x 82 x 119.4 mm) |
|---|---|
| WEIGHT | 1.65 lbs (750 g) |
| WATER RATING | IPX6 and IPX7 (front panel only, when properly installed) |

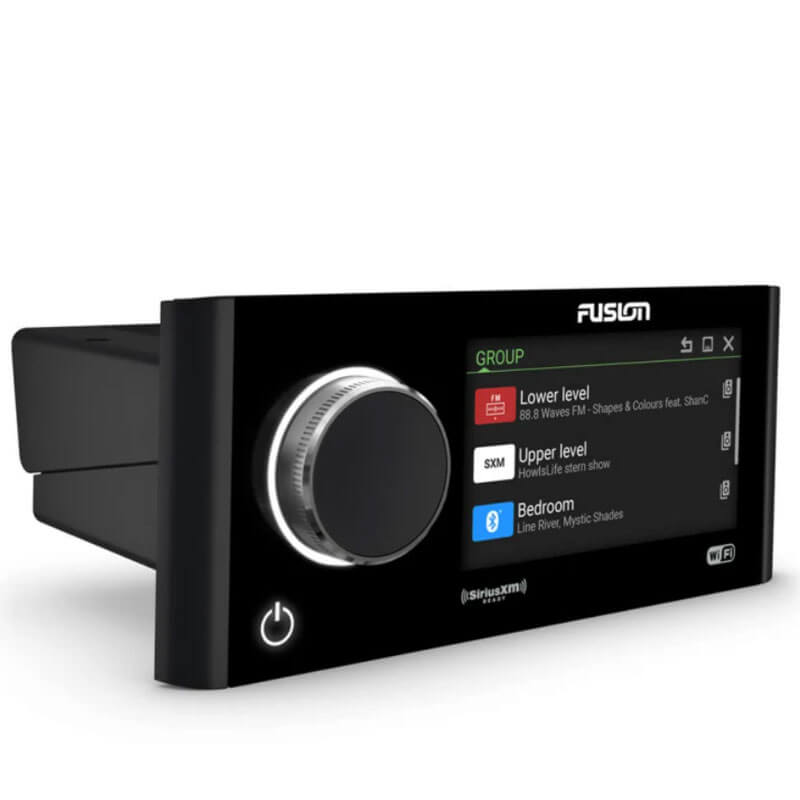

| DISPLAY | 4.3″ capacitive touchscreen color LCD |
| OPERATING TEMPERATURE | 32° to 122° F (0° to 50° C) |
| CURRENT (MAX) | 15 A |
Networking |
|
| NMEA 2000® LEN | 1 (50 mA) |
|---|---|
| BLUETOOTH® WIRELESS RANGE | up to 30 ft |
| ANT® WIRELESS RANGE | Up to 10 ft |
| WIRELESS FREQUENCIES/PROTOCOLS | Wi-Fi®: 2.4 GHz @ +15 dBm nominal BLUETOOTH®: 2.4 GHz @ +10 dBm nominal ANT®: 2.4 GHz @ +4 dBm nominal |
Audio |
|
| AMPLIFIER | Class-D (2 ohm stereo-stable) |
|---|---|
Electrical Features |
|
| POWER INPUT | 10.8 – 16 VDC |
|---|---|
| COMPASS-SAFE DISTANCE | 5.9″ (150 mm) |
Stereo Features |
|
| PEAK POWER | 280 watts |
|---|---|
| RATED POWER OUTPUT (2 OHM) | 43 watts RMS x 4 @ 14.4 V input < 10% THD |
| RATED POWER OUTPUT (4 OHM) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| BUILT-IN WI-FI® | yes |
| BUILT-IN DIGITAL SIGNAL PROCESSING (DSP) | yes (with custom DSP profile setup using Fusion-Link™ app) |
| PARTYBUS™-NETWORK CAPABILITIES | yes (wired or wireless) |
| FUSION-LINK™ CONTROL | yes (MFD, smart device and Garmin watch) |
| MULTI-ZONE™ TECHNOLOGY | 4 zones |
| SIRIUSXM-READY | yes |
| DAB+ READY | yes |
| SUPPORTS NRX WIRED REMOTE | yes |
| MULTI-LANGUAGE INTERFACE | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish |
| SOFTWARE UPDATES | Over-the-air updates via Fusion-Link™ app / USB |
| WARRANTY | 3years |
Sources |
|
| SUPPORTED SOURCES | AM, FM, BLUETOOTH®, Apple® AirPlay® 2, digital optical input, USB audio, iPhone®, iPod®, AUX x2, UPnP, MTP
SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner) DAB+ ready (available in Europe and Australia only) |
|---|---|

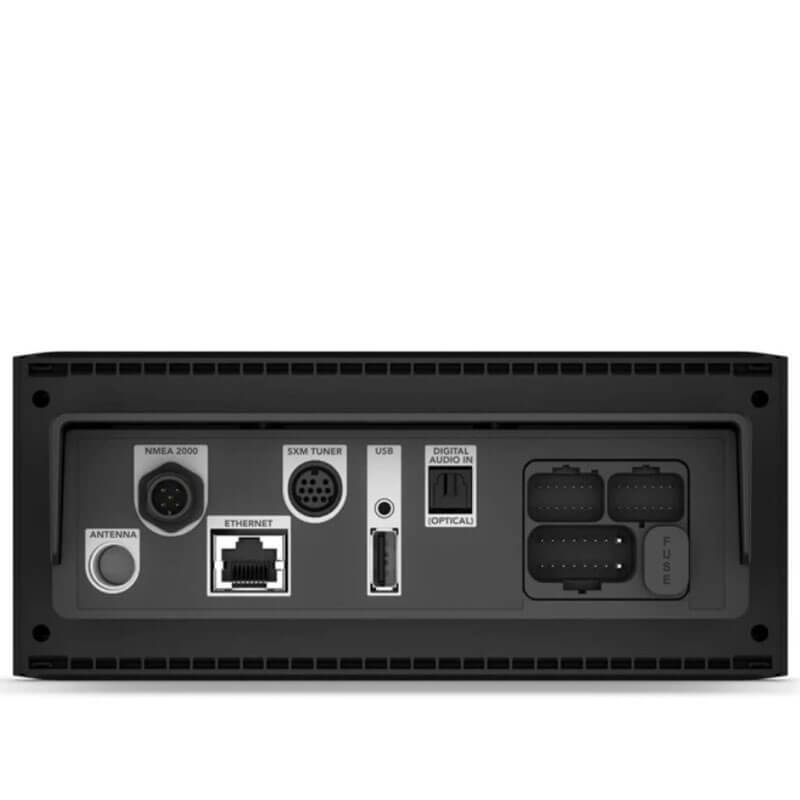

Connections |
|
| AUXILIARY INPUTS (RCA) | 2 |
|---|---|
| OPTICAL AUDIO INPUTS (DIGITAL OPTICAL INPUT SPDIF) | 1 |
| ETHERNET PORTS | 1 |
| NMEA 2000® PORTS | 1 |
| USB 2.0 PORTS | 1 |
| SIRIUSXM PORTS | 1 |
| AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) | 1 |
| SPEAKER CONNECTIONS | 4 (2 zone amplified) |
| RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) | 4 zones (requires external amplification) |
| LINE OUT | 4 (L + R per zone, requires external amplification) |
| SUBWOOFER OUT | 4 (1 mono output per zone, requires external amplification) |
